Passend für Porsche 997 Kolben

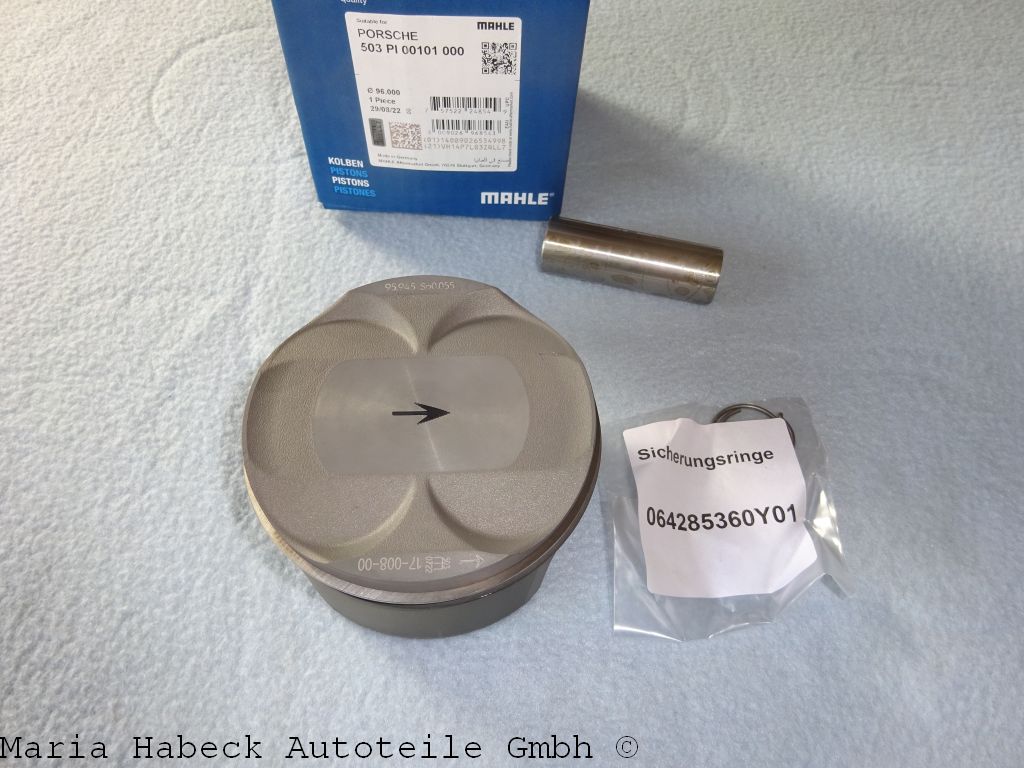

Mahle piston 996 997 3.6 Carrera Set 6 pieces Suitable for Porsche 996 997 Carrera 2 / 4 with 235 KW / 320 345 HP year 01-08 Trough depth 1 [mm]: 1.35 Valve pocket depth 1 [mm]: 5.55 Supplementary article/Supplementary information 2: without cooling channel Production number: 96 P 30 Trough diameter [mm]: 80.0 for engine number: M96.03/ M96.05 Piston clearance [mm]: 0.055 Cylinder bore [mm]: 96.0 Bolt Ø [mm]: 22.0 Bolt length [mm]: 58.0 Component number: 1. R 1.20 N Component number: 2. NM 1.50 P Component number: 3. 3S 2.00 N Compression height [mm]: 32.95 Length [mm]: 52 Engine code M96.03 Manufacturer: Mahle Manufacturer number: 503 PI 00101 000 Porsche comparison number: 996 103 052 20

Mahle piston SET 6 pieces Suitable for Porsche 997 3.8 Carrera S / 4 S 355 HP Year of construction 7/2004 - 12/2008 Trough depth 1 [mm]: 2.7 Valve pocket depth 1 [mm]: 5.97 Valve pocket depth 2 [mm]: 5.97 Supplementary article/Supplementary information 2: without cooling channel Production number: 99 P5 Trough diameter [mm]: 71.76 Fire land height [mm]: 8 for engine number: M97.01 Piston clearance [mm]: 0.06 Cylinder bore [mm]: 99.0 Bolt Ø [mm]: 22.0 Bolt length [mm]: 58.0 Component number: 1. R 1.2 N Component number: 2. NM 1.5 Component number: 3. 3S 2 N Compression height [mm]: 32.95 The pistons are supplied complete with piston pins, piston pin retainers and piston rings. Manufacturer: Mahle Manufacturer number:503PI00100000 Porsche comparison number: 997 103 030 30 / 997 103 030 31

Mahle piston ring set suitable for Porsche 997 Dimensions: 1.2/1.5/2.0mm - bore 99mm Set 6 SET Manufacturer: Mahle Manufacturer number: 503 RS 00100 0N0

Mahle piston Suitable for Porsche 997 3.8 Carrera S / 4 S 355 HP Year of construction 7/2004 - 12/2008 Trough depth 1 [mm]: 2.7 Valve pocket depth 1 [mm]: 5.97 Valve pocket depth 2 [mm]: 5.97 Supplementary article/Supplementary information 2: without cooling channel Production number: 99 P5 Trough diameter [mm]: 71.76 Fire land height [mm]: 8 for engine number: M97.01 Piston clearance [mm]: 0.06 Cylinder bore [mm]: 99.0 Bolt Ø [mm]: 22.0 Bolt length [mm]: 58.0 Component number: 1. R 1.2 N Component number: 2. NM 1.5 Component number: 3. 3S 2 N Compression height [mm]: 32.95 The pistons are supplied complete with piston pins, piston pin retainers and piston rings. Manufacturer: Mahle Manufacturer number:503PI00100000 Porsche comparison number: 997 103 030 30 / 997 103 030 31

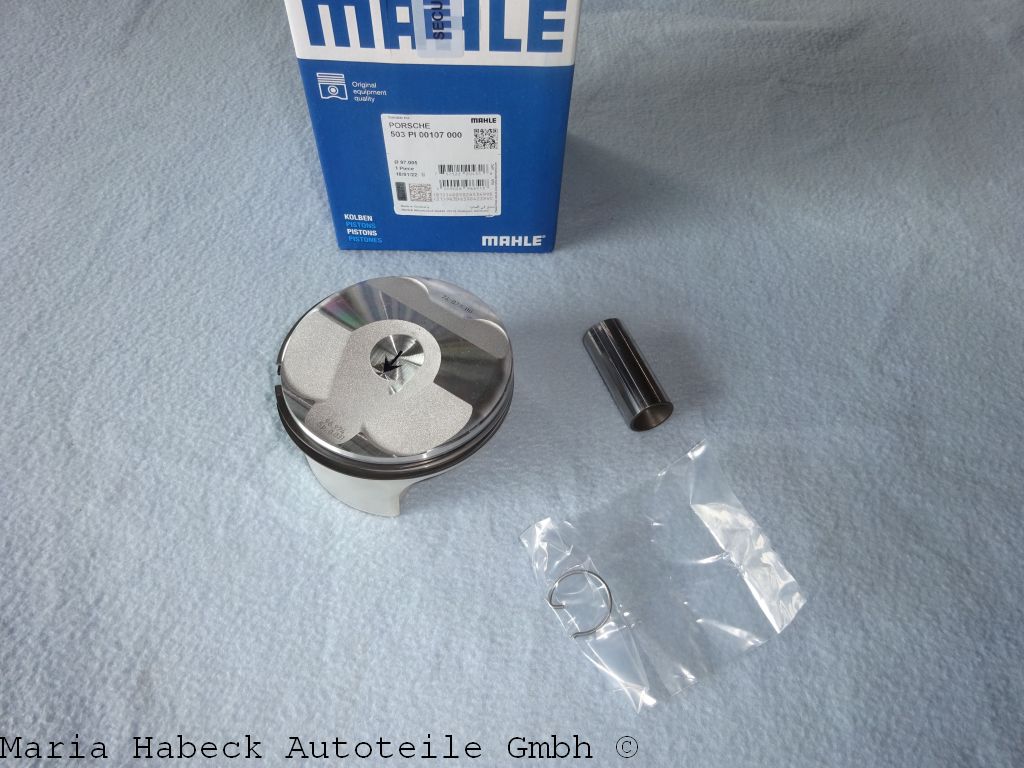

Mahle pistons with piston pins and piston rings Suitable for Porsche 997 Carrera 2 / 4 with 254 KW / 345 HP Suitable for engine code MA1.02 Year of construction 2008 - 2012 Cylinder bore [mm]: 97.005 Length [mm]: 54 Compression height [mm]: 29.95 Bolt length [mm]: 53,000 Bolt Ø [mm]: 22,000 Trough diameter [mm]: 2.15 Valve pocket depth 1 [mm]: 1.46 Valve pocket depth 2 [mm]: 0.76 Fire land height [mm]: 4.5 Production number: 97 P 28 Component number: 1. R 1.2 N, 2. NM 1.5 P, 3. 3S 2.0 N Piston clearance [mm]: 0.025 Net weight [g]: 505.0 Manufacturer: Mahle Manufacturer number: 503 PI 00107 000 Porsche comparison number: 9A1 103 036 00

Mahle pistons with piston pins and piston rings Set 6 pieces Suitable for Porsche 997 Carrera 2 / 4 with 254 KW / 345 HP Suitable for engine code MA1.02 Year of construction 2008 - 2012 Cylinder bore [mm]: 97.005 Length [mm]: 54 Compression height [mm]: 29.95 Bolt length [mm]: 53,000 Bolt Ø [mm]: 22,000 Trough diameter [mm]: 2.15 Valve pocket depth 1 [mm]: 1.46 Valve pocket depth 2 [mm]: 0.76 Fire land height [mm]: 4.5 Production number: 97 P 28 Component number: 1. R 1.2 N, 2. NM 1.5 P, 3. 3S 2.0 N Piston clearance [mm]: 0.025 Net weight [g]: 505.0 Manufacturer: Mahle Manufacturer number: 503 PI 00107 000 Porsche comparison number: 9A1 103 036 00

Mahle piston 996 997 3.6 Carrera Suitable for Porsche 996 997 Carrera 2 / 4 with 235 KW / 320 345 HP year 01-08 Trough depth 1 [mm]: 1.35 Valve pocket depth 1 [mm]: 5.55 Supplementary article/Supplementary information 2: without cooling channel Production number: 96 P 30 Trough diameter [mm]: 80.0 for engine number: M96.03/ M96.05 Piston clearance [mm]: 0.055 Cylinder bore [mm]: 96.0 Bolt Ø [mm]: 22.0 Bolt length [mm]: 58.0 Component number: 1. R 1.20 N Component number: 2. NM 1.50 P Component number: 3. 3S 2.00 N Compression height [mm]: 32.95 Length [mm]: 52 Engine code M96.03 Manufacturer: Mahle Manufacturer number: 503 PI 00101 000 Porsche comparison number: 996 103 052 20

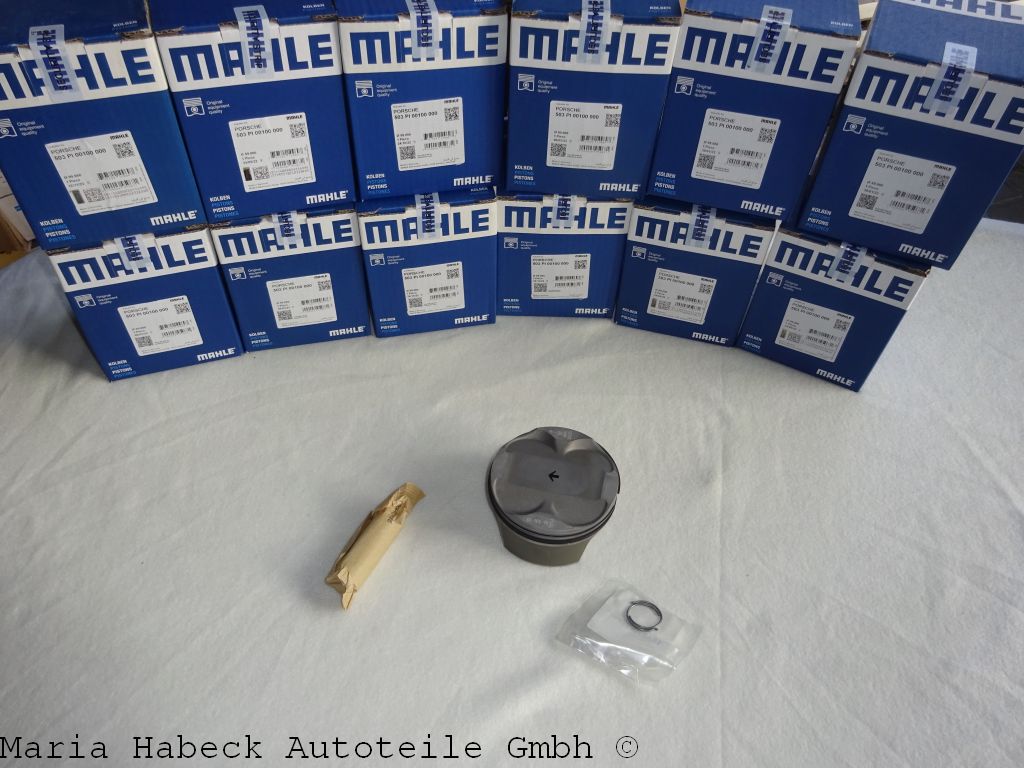

Mahle piston SET 12 pieces Suitable for Porsche 997 3.8 Carrera S / 4 S 355 HP Year of construction 7/2004 - 12/2008 Trough depth 1 [mm]: 2.7 Valve pocket depth 1 [mm]: 5.97 Valve pocket depth 2 [mm]: 5.97 Supplementary article/Supplementary information 2: without cooling channel Production number: 99 P5 Trough diameter [mm]: 71.76 Fire land height [mm]: 8 for engine number: M97.01 Piston clearance [mm]: 0.06 Cylinder bore [mm]: 99.0 Bolt Ø [mm]: 22.0 Bolt length [mm]: 58.0 Component number: 1. R 1.2 N Component number: 2. NM 1.5 Component number: 3. 3S 2 N Compression height [mm]: 32.95 The pistons are supplied complete with piston pins, piston pin retainers and piston rings. Manufacturer: Mahle Manufacturer number:503PI00100000 Porsche comparison number: 997 103 030 30 / 997 103 030 31

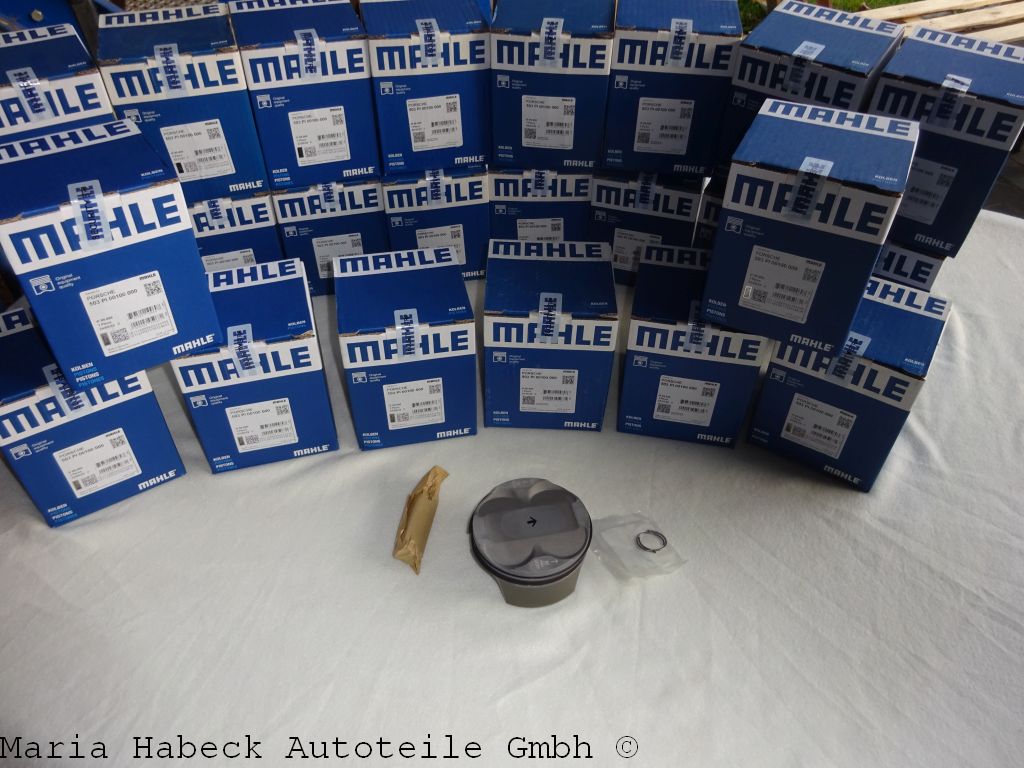

Mahle piston SET 24 pieces Suitable for Porsche 997 3.8 Carrera S / 4 S 355 HP Year of construction 7/2004 - 12/2008 Trough depth 1 [mm]: 2.7 Valve pocket depth 1 [mm]: 5.97 Valve pocket depth 2 [mm]: 5.97 Supplementary article/Supplementary information 2: without cooling channel Production number: 99 P5 Trough diameter [mm]: 71.76 Fire land height [mm]: 8 for engine number: M97.01 Piston clearance [mm]: 0.06 Cylinder bore [mm]: 99.0 Bolt Ø [mm]: 22.0 Bolt length [mm]: 58.0 Component number: 1. R 1.2 N Component number: 2. NM 1.5 Component number: 3. 3S 2 N Compression height [mm]: 32.95 The pistons are supplied complete with piston pins, piston pin retainers and piston rings. Manufacturer: Mahle Manufacturer number:503PI00100000 Porsche comparison number: 997 103 030 30 / 997 103 030 31
